How to Use a Siphon Pump: A Complete Guide

Siphon pumps are incredibly useful tools for transferring liquids from one container to another without the need for electricity or complex machinery. Understanding how to properly use a siphon pump can save you time and effort.

What is a Siphon Pump?

A siphon pump is a simple device that uses atmospheric pressure and gravity to move liquid from a higher container to a lower one. Most modern siphon pumps come with a manual pump mechanism that helps you get the flow started, eliminating the need for the traditional (and potentially dangerous) method of sucking on a tube.

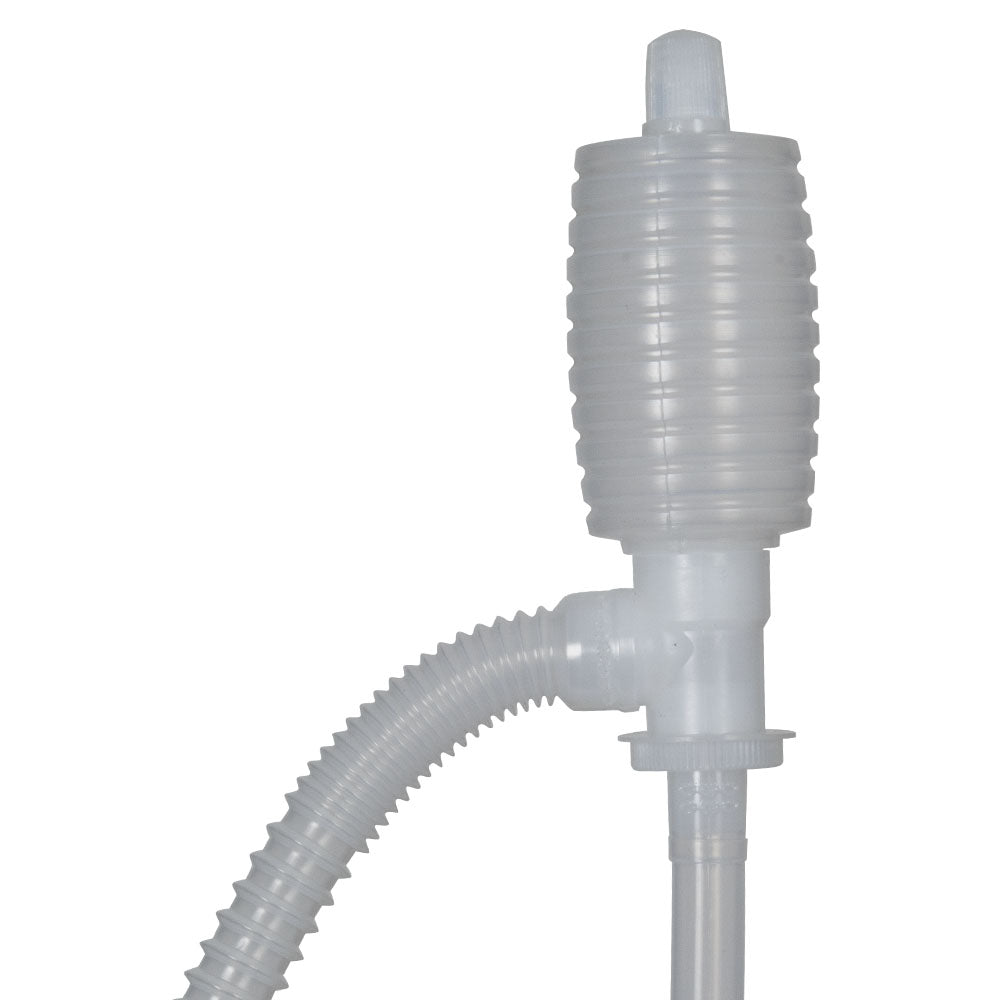

Essential Components

Before we dive into the how-to, let's identify the key parts of a typical siphon pump:

• Intake tube: The longer tube that goes into the source liquid
• Output tube: The tube where liquid flows out
• Hand pump or bulb: The control mechanism at the top
• Check valve: Prevents backflow (in some models)

Step-by-Step Instructions

1. Prepare Your Setup

Position your containers so that the source container (where you're pumping from) is higher than the destination container. This height difference is crucial for maintaining the siphon effect once it's started.

2. Insert the Intake Tube

This is critical: Place one end of the longer tube (the intake tube) into the water or liquid you want to transfer. Make sure it's submerged well below the surface to prevent air from entering the system. The tube should reach close to the bottom of the container if you want to remove most of the liquid.

3. Position the Output Tube

Place the shorter output tube into your destination container or direct it to where you want the liquid to flow.

4. Use the Control Pump

Here's where the magic happens: Use the control mechanism on top to start the pump. This is typically a hand pump, bulb, or lever that you'll need to operate several times. Pump vigorously until you see liquid begin to flow through the tubes. This action creates the initial suction needed to overcome atmospheric pressure and start the siphon.

5. Maintain the Flow

Once liquid begins flowing steadily, you can usually stop pumping. The siphon effect will maintain the flow as long as:

• The source container remains higher than the destination
• The intake tube stays submerged in the liquid
• There are no air leaks in the system

Troubleshooting Common Issues

Flow won't start: Make sure you're pumping vigorously enough and that the intake tube is fully submerged. Check for air leaks in connections.

Flow stops suddenly: This usually means the intake tube has come out of the liquid or air has entered the system somewhere.

Slow flow rate: Increase the height difference between containers, or check for kinks or blockages in the tubing.

Maintenance and Storage

After each use, flush the system with clean water (unless you were transferring water). Store the pump with tubes drained and in a clean, dry location.

Applications

Siphon pumps are perfect for:

• Emptying water from bathtub bladders
• Transferring water between containers
• Emergency water transfer situations

Conclusion

Mastering the siphon pump is all about understanding the physics involved and following proper technique. Remember the two key points: always ensure one end is properly submerged in the liquid, and use the control mechanism on top to create the initial suction. With practice, you'll find siphon pumps to be reliable, efficient tools for liquid transfer tasks.

The beauty of siphon pumps lies in their simplicity and effectiveness. Once you've got the hang of it, you'll wonder how you ever managed liquid transfers without one!
